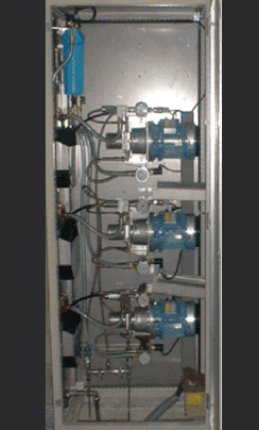

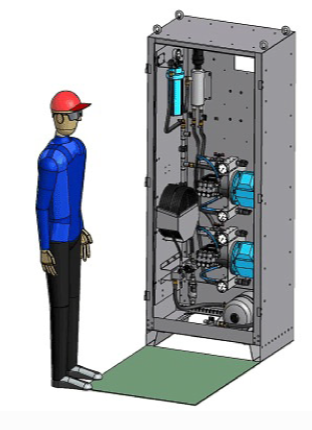

6.     P o w e r   P a c k   640 bar  (Kolbenpumpe)

Anwendungen:
Trenn - Systeme (Aquaflex-WCS) Reinigung-Systeme (Aquaflex-DCS)

Nr.	Definition	Techn. specification
1.	Presure max.	40 bar (130 bar)
2.	flow rate	4 l/min               7 l/min             10 l/min
2.	power	0.9 l/min               2.0 l/min             3.0 l/min
4.	size	b x l x h = 800 x 665 x 1240 mm
5.	consumer	1, 2, 3, 4, .......
6.	max. temperature	70 Grad Celsius
7.	piston diameter	18 mm               18 mm             18 mm
9.	stroke of the piston	3.4 mm               7 mm              10 mm
10.	pressure controll	remote control
