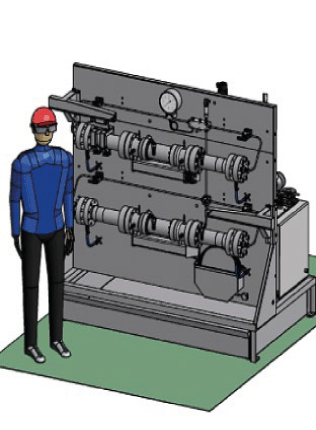

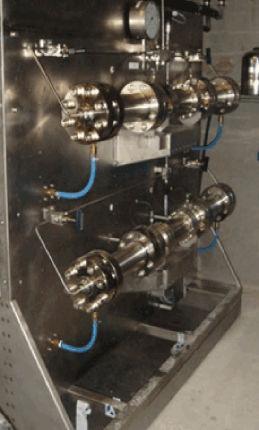

2. P o w e r P a c k DPD 4000 bar
| Anwendungen: |
|---|
|
Schneid-Systeme
Reinigung-Systeme
|
| Nr. | Definition | Techn. specification |
|---|---|---|
| 1. | Presure max. | 400-2000 bar (3800 bar) |
| 2. | flow rate | 3.8 L/min |
| 3. | size | b x l x h = 1800 x 1075 x 1820 mm |
| 4. | consumer | 1, 2, 3, 4, ....... |
| 5. | power | 400V / 50 Hz ( 460V / 60 Hz) |
| 6. | piston diameter | 19 mm |
| 7. | stoke of the piston | 240 mm |
| 8. | pressure controll | remote control |
| 9. | max. temperature | 50 Grad Celsius |
| 10. | n - rate | 1 : ---- |
