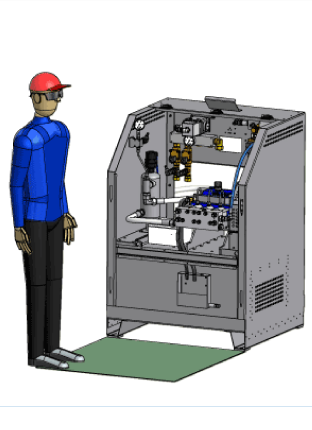

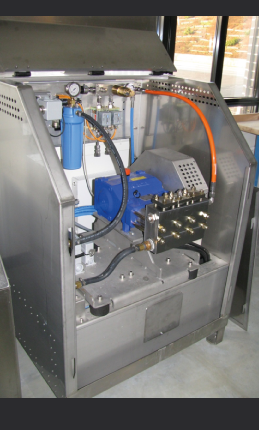

5. P o w e r P a c k 640 bar
| Anwendungen: |
|---|
|
Schneid-Systeme
Reinigung-Systeme
|
| Nr. | Definition | Techn. specification |
|---|---|---|
| 1. | power | 500 bar (600 bar) |
| 2. | Power | 35 kW 20 kW 18 kW |
| 3. | flow rate | 34 l/min 19 l/min 17 l/min |
| 4. | size | b x l x h = 839 x 925 x 1890 mm |
| 5. | consumer | 1, 2, 3, 4, ....... |
| 6. | max. temperature | 70 Grad Celsius |
| 7. | piston diameter | 20 mm |
| 9. | stroke of the piston | 40 mm |
| 10. | pressure controll | remote control |
