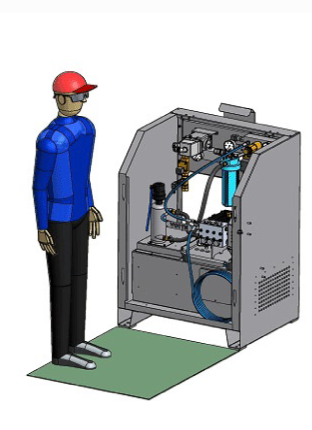

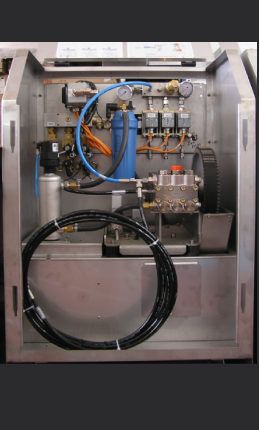

7.   P o w e r   P a c k   350 bar

Anwendungen:
Schneid-Systeme (Aquaflex-PCS) Reinigung-Systeme (Aquaflex-DCS) Trenn - Systeme (Aquaflex-WCS)

Nr.	Definition	Techn. specification
1.	Presure max.	350 bar                250 bar                200 bar
2.	flow rate	17,8 l/min               21 l/min             21 l/min
3.	power	11 kW (15 kW)
4.	size	b x l x h = 800 x 665 x 1240 mm
5.	consumer	1, 2, 3, 4, .......
6.	max. temperature	70 Grad Celsius
7.	piston diameter	18 mm
9.	stroke of the piston	20 mm
10.	pressure controll	remote control
